French Fries Production Line: Engineering Guide for Fresh-Cut and Frozen Fry Plants

The French Fries Production Line is engineered as a 14-stage continuous process, transforming raw potatoes into finished fries with throughputs from 100 kg per h to 5000 kg per h. Applying the 80/20 rule, peeling, two-stage blanching, and par-frying together account for 80 percent of final product quality, making them critical control points for yield, color, and shelf life.

This technical guide details the French Fries Production Line process flow, core equipment, automation levels, plant layout, food-safety controls, and CapEx ROI math. It is structured for technical buyers and project managers overseeing line procurement, commissioning, or upgrade projects. Expect evidence-driven benchmarks, authoritative standards, and actionable insights for delivering robust, compliant, and profitable operations.

Request a tailored French fries line quotation

What Is a French Fries Production Line? Definition, Scope, and Output Tiers

The French Fries Production Line is an integrated system of continuous-flow machines that convert raw potatoes into three formats: frozen par-fried fries (85% of global capacity), fresh-cut chilled fries (7-10 days shelf life), and fully fried seasoned snack fries (vacuum-packed). Each line integrates 14 functional stages, 9-12 standalone machines, and a PLC + HMI control system.

Output Capacity Tiers and Typical Investment

Tier	Throughput	Target Buyer	CapEx EXW	Footprint	Crew
Small Scale	100-300 kg/h	Local QSR supplier	USD 110k-280k	200-400 m²	6-8
Mid-Range	500-1000 kg/h	Regional brand	USD 380k-750k	600-900 m²	10-14
Industrial	1500-2000 kg/h	National brand	USD 1.1M-1.8M	1200-1800 m²	15-20
Large Industrial	3000+ kg/h	Export-oriented producer	USD 2.5M-5M+	2000-2500 m²	18-25
Snack/Coated	100-500 kg/h	Branded snack producer	USD 150k-600k	300-700 m²	8-12

Typical raw-to-finished yield is 48-52%. Always confirm whether quoted capacity refers to raw input or finished output before contract.

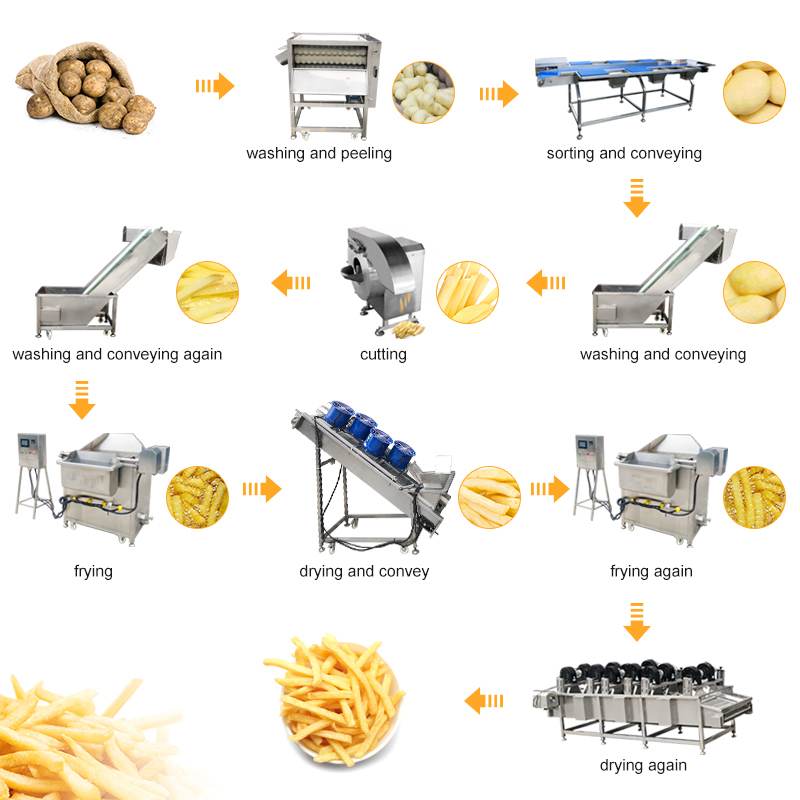

Full Process Flow of a French Fries Production Line

The 14-stage standard sequence for a French Fries Production Line remains consistent across all output tiers; only the technology and automation level at each step differ.

Key Operating Windows for a 1000 kg per h Frozen Line

Steam peeling: 1.0-1.6 MPa saturated steam, peel loss <=8%
Strip cutting: 6×6 mm or 9×9 mm, hydro-cutting at 3 kg/cm²
First blanching: 90 deg C x 3-5 minutes (polyphenol oxidase inactivation)
Second blanching: 60 deg C x 1-2 minutes (color stabilization, SAPP uptake)
Hot-air drying: 8-10% surface moisture removal
Par-frying: 175-180 deg C x 50-140 seconds depending on strip thickness
De-oiling: vibratory + air-knife, target oil content <8% on dry matter
IQF freezing: -35 deg C chamber, -18 deg C core temperature at exit

Engineering rationale: first blanching at 90 deg C (not 95 deg C) prevents surface starch gelatinization above 92 deg C, which would spike oil pickup. Second blanching at 60 deg C is the optimal SAPP absorption window, preventing gray-blue discoloration. These settings are critical for McDonald specification compliance.

For a French Fries Production Line producing fresh-cut fries, the process omits the IQF stage and routes product to chilled packing after par-frying. An ascorbic acid dip at 0.1-0.3% extends shelf life to 7-10 days at 4 deg C, with strict cold-chain logistics from pack-out to distribution. Finished fries retain structure and color, but must be delivered under continuous refrigeration.

Core Equipment Breakdown of a French Fries Production Line

Major equipment for a French Fries Production Line scales by output tier, impacting dimensions, power, and automation scope.

Peeling: Brush vs Steam

Brush roller peeler (below 500 kg/h): 4.5 kW, 9 nylon brush rollers, 12-15% peel loss. Steam peeling (1000 kg/h+): 4-5 t/h raw, 1.0-1.6 MPa, peel loss <=8%, 14-20 month payback versus brush.

Strip Cutting: Mechanical vs Hydraulic

Mechanical cutters: 7-10 mm adjustable width, 200-300 kg/h per unit, 1.5 kW. Hydro-cutting (above 1500 kg/h): 3 kg/cm² high-pressure water, 6×6 / 9×9 mm interchange, 3000-5000 kg/h continuous capacity.

Blanching: Single-Stage vs Two-Stage

Small lines: single electrically-heated blancher (36 kW). Industrial lines: two-stage steam-heated blanchers with hydraulic belt-lift, separate temperature/time controls, inline SAPP dosing. Two-stage architecture is essential for 12-month frozen shelf life; single-stage limits to 90 days before color failure.

Par-Frying: The OpEx Battlefield

External gas heat exchanger 1.2 million kcal/h, multi-fuel (natural gas/LPG/diesel/heavy oil/methanol)
Dual coarse filters 500 mm dia, A/B redundant, 12.5 m³/h circulation
Inline fine filter 80 L/min, 0.3-0.37 MPa, 2 paper filters/day
Vertical tube oil cooler cuts post-shift cleaning by 60-70%
Tail scraper, side smoke hood, 5 cm aluminum-silicate insulation

This configuration extends oil life from 3-4 days to 12-15 days, saving USD 180,000-240,000 per year in palm oil cost on a 3000 kg/h line.

IQF Freezing

Mid-range plant IQF: compact cabinet 8000x2200x2300 mm, 125 HP semi-hermetic screw compressor, 250 kW installed, +/-2 deg C. Industrial lines: fluidized-bed tunnel freezers with 120-150 mm B1-grade polyurethane panels (>=40 kg/m³), variable-pitch evaporators, 4:1 ammonia or freon circulation.

For a French Fries Production Line in fresh-cut configuration, omit IQF and add ozone wash at 0.5-1.0 ppm plus ascorbic acid dip at 0.1-0.3%. This preserves color and extends shelf life. Equipment selection prioritizes minimal thermal load and rapid chilling to 4 deg C pack-out, with an operator crew of 8-12 and total EXW cost in the USD 380k-520k range.

Six Engineering Advantages Built Into Our French Fries Production Line

The most significant differences in a French Fries Production Line emerge after 12 months of continuous operation, especially in yield, oil cost, and product color.

1. Dual-Stage Steam-Heated Blanching with Inline SAPP Dosing

Two-tank blancher with independent PID control and SAPP injection at second stage, validated by peroxidase strip test and titration.

Result: 12-month frozen shelf life without color drift, acrylamide below EU 500 microgram/kg threshold.

2. 1.2 Million Kcal External Gas Heat Exchanger

Isolated heat source reduces fryer body stress, supports natural gas/LPG/diesel/heavy oil/methanol without hardware change.

Result: 30-40% extended fryer body life, fuel flexibility for unreliable gas markets.

3. Dual-Redundant Coarse Filter Plus Inline Fine Filter

A/B redundant 500 mm coarse filter with inline 80 L/min fine filter, monitored TPM, and daily filter change schedule.

Result: TPM held at 12-16% for 12-15 days versus 3-4 day industry average, USD 180,000-240,000 saved per year on a 3000 kg/h line.

4. Vertical Tube Oil Cooler for Post-Shift Cleaning

Rapid oil cooling enables safe, efficient fryer cleaning and filter maintenance at shift end.

Result: 200+ extra production hours per year.

5. Hydro-Cutter with Interchangeable Cutting Heads

Tool-less clamp system for 6×6 mm, 9×9 mm, crinkle, wedge, and shoestring formats, 3-minute changeover.

Result: 6×6/9×9/crinkle/wedge/shoestring format flexibility without re-engineering.

6. Fluidized-Bed IQF with Variable Fin-Spacing Evaporator

Adjustable evaporator fin spacing and airflow control for longer defrost intervals and stable core temperatures.

Result: Defrost intervals from 6-8 hours to 18-24 hours, lower refrigeration OpEx.

Get equipment list for your fries line

Automation Levels: Manual, Semi-Automatic, and Fully Automatic

The automation decision in a French Fries Production Line is often misunderstood. First-time buyers may over-automate or under-automate, saving 25% CapEx but giving back 40% OpEx within 18 months due to labor and yield losses.

Three-Tier Comparison

Dimension	Semi-Automatic	Mostly Automatic	Fully Automatic
Typical throughput	100-300 kg/h	300-1000 kg/h	1000-5000+ kg/h
Operators required	8-12	6-10	3-6 per shift
Control system	Local switches + relay	PLC + HMI per machine	Centralized PLC + SCADA
Output consistency	+/-8-12%	+/-4-6%	+/-2-3%
CapEx range	USD 110k-280k	USD 380k-750k	USD 1.1M-5M+
OEE achievable	55-65%	70-78%	82-88%
ROI window	14-24 months	18-28 months	24-36 months
Best fit	Local QSR	Regional brand	Export, 24/7 ops

The Decision Heuristic We Use With Buyers

If fully-burdened operator cost is below USD 350/month and target throughput is under 500 kg/h, semi-automatic is optimal. If operator cost is USD 600/month or higher, or if export compliance is required, fully automatic is the only viable long-term choice. Many African and South Asian plants start mostly automatic and add modules in years 3-4.

Why Manufacturers Choose Us for Their French Fries Production Line

Selecting a French Fries Production Line is a 10-15 year capital decision. Buyers choose us for five proven capabilities, all evidenced by project delivery and technical scope.

1. 15+ Years Field Commissioning

40+ French Fries Production Line projects delivered across 22 countries including Nigeria, Kenya, Egypt, Saudi Arabia, Indonesia, Vietnam, Pakistan, Russia, and Brazil. Every line is commissioned by our own engineers, on-site for 4-6 weeks until handover.

2. Process Engineering Beyond Equipment Supply

Every project includes raw-material spec packet (variety, dry matter, reducing sugar, storage), SAPP dosing curve, two-stage blanch validation, TPM monitoring, and IQF core-temperature SOP. This ensures compliance with McDonald, Carrefour, and Lulu specs.

3. Multi-Fuel Flexibility for Emerging Markets

External gas heat exchanger supports natural gas, LPG, diesel, heavy oil, or methanol without hardware change. Our lines run diesel year-round in West Africa and LPG with seasonal switching in MENA.

4. Inline Filtration That Triples Oil Life

Dual-redundant coarse filter plus inline fine filter is standard on every par-fryer above 500 kg/h. On a 3000 kg/h line, this saves USD 180,000-240,000 per year in palm oil cost.

5. Upgrade-Path Layout Design

Every layout includes pre-allocated footprint and utility tap-offs for future modules. At the upgrade point, new units install into reserved bays—no need to scrap original equipment.

Plant Layout and Utility Requirements for a French Fries Production Line

The most costly mistake is locking in French Fries Production Line equipment before finalizing plant layout, utility loads, and civil tolerances. Workshops are often 15% undersized if layout is an afterthought.

Workshop Layout Principles

One-way material flow: Raw potatoes enter dirty zone, then wet zone (cut/blanch/dry), then hot zone (par-fry), then clean zone (cool/IQF/pack). No backtracking.
Clean/dirty zoning: Separate staff uniforms, door entries, break rooms. Enables BRC and IFS audits to pass first time.
Overhead utilities: Steam, air, water, power run above equipment; floor drains pitched 1.5-2% toward collection points.

Utility Load Reference for 1000 kg per h Frozen Line

Utility	Demand	Notes
Installed electrical	180-220 kW	380V/50Hz, 3-phase + N
Natural gas	95-120 m³/h	Gas-fired par-fryer + steam boiler
Process water	14-18 m³/h	Soft, <=200 ppm hardness
Saturated steam	1.5-2.0 t/h	0.7-0.8 MPa from 2 t boiler
Compressed air	1.5-2.0 m³/min	0.6 MPa, dry, oil-free
Refrigeration load	180-220 kW	For IQF tunnel, ammonia or freon
Wastewater	12-15 m³/h	BOD 1800-2400 mg/L, requires pre-treatment

For a 3000 kg/h French Fries Production Line, utilities scale linearly: 350 kW electrical, 280 m³/h gas, 40 m³/h water, 4 t/h steam, and 2000-2500 m² footprint.

Quality, Food Safety, and Certifications

Frozen fries are a globally traded commodity. Documented food-safety compliance is non-negotiable for EU retail, US foodservice, GCC supermarkets, and African export contracts. Procurement routinely audits lines for compliance.

Certification Stack

HACCP: Mandatory worldwide
ISO 22000: Quality management system framework
BRCGS Food Safety Issue 9: UK and most EU private-label retailers
IFS Food: German, French, Italian retailers
FDA 21 CFR 117: US market compliance
GCC Halal Compliance: Middle East markets
EAC TR CU 021/2011: Russia, Belarus, Kazakhstan, EAEU

The French Fries Production Line carries CE marking and PED 2014/68/EU compliance for all pressurized components.

Six Critical Quality Control Points (KQCPs)

KQCP-1 Raw potato sugar control: Reducing sugar <0.4% (target 0.3%). Recommend in-line refractometry plus 14-21 day storage at 7-9 deg C.

KQCP-2 Two-stage blanch validation: Polyphenol oxidase should test negative on peroxidase assay after 90 deg C stage, otherwise color failures appear after 60-90 days frozen storage.

KQCP-3 SAPP dosing accuracy: 0.3-0.5% w/w in second blanch tank, monitored by daily titration.

KQCP-4 Acrylamide control: EU Regulation 2017/2158. Hold par-frying <=180 deg C, validate <=500 microgram/kg.

KQCP-5 Frying oil TPM: Test daily; replace before TPM exceeds 24%. Inline filtration holds TPM at 12-16% for 12-15 days.

KQCP-6 IQF core temperature: Target <=-18 deg C at tunnel exit, validated daily with thermocouple probe.

For a French Fries Production Line producing fresh fries, audit readiness depends on chilled-chain temperature logs at 15-minute intervals, antioxidant dip Certificate of Analysis, and a 7-10 day shelf-life challenge test in actual distribution conditions.

Full line traceability and documentation for food safety certification

Real-World Project Cases We Have Delivered

The following cases illustrate a range of French Fries Production Line projects delivered globally. Each is anonymized, but all technical and commercial details are retained for reference.

West Africa 200 kg per h Fresh-Cut Line, Lagos Commissioned 2022

Customer: Family-owned foodservice supplier supplying fresh fries to QSR chains in Lagos.
Challenge: Manual peeling and cutting limited output and shelf life, inconsistent color and texture.
Solution:
- Brush roller peeler and mechanical cutter for 200 kg/h raw input
- Single-tank electric blancher with ascorbic acid dip
- Chilled packing with 7-day shelf-life validation
Outcome:
- Output doubled with 48-51% yield and 90% color acceptance rate
- Reduced operator requirement from 14 to 7 per shift, HACCP plan registered
Key Lesson: Small scale lines must balance automation and labor to control fixed costs.

Southeast Asia 1000 kg per h Frozen Line, Jakarta Commissioned 2021

Customer: Regional brand exporting to Malaysia and Singapore, targeting BRCGS-certified retail contracts.
Challenge: Existing semi-automatic line could not meet BRCGS Issue 9 or maintain oil quality for 14-day runs.
Solution:
- Steam peeler and hydro-cutter for 1000 kg/h throughput
- Dual-stage steam blancher with inline SAPP dosing
- Fluidized-bed IQF tunnel and centralized SCADA control
Outcome:
- Achieved BRCGS Issue 9 and IFS Food certification with 12-month shelf life
- Oil life extended to 13 days, saving USD 60,000 per year on palm oil
Key Lesson: Process automation and filtration are non-negotiable for export-grade output.

South Asia 2000 kg per h Industrial Line, Pune Commissioned 2020

Customer: National snack food group supplying QSR, retail, and export under multiple brands.
Challenge: Required 24/7 operation, full BRCGS/FDA certification, and 22-month CapEx payback for investors.
Solution:
- Steam peeler, dual hydro-cutters, dual-tank blanchers with PID control
- Multi-fuel par-fryer with inline filtration and oil cooling
- Fluidized-bed IQF tunnel, optical color sorter, and SCADA system
Outcome:
- Achieved 87% OEE, 24-month payback, and 28% EBITDA margin
- Passed BRCGS Issue 9 and FDA 21 CFR 117 audits on first attempt
Key Lesson: Line design must anticipate future expansion and regulatory shifts.

CapEx, OpEx, and ROI Math for a French Fries Production Line

This transparent investment model is based on a 500 kg/h fully automatic French Fries Production Line using real project cost data and post-commissioning audits.

CapEx Breakdown

Item	% of Total	Notes
Process equipment	60%	EXW basis
Civil works and foundations	12-15%	Greenfield vs brownfield
Utility build-out	8-10%	Boiler, transformer, refrigeration
Installation and commissioning	7-9%	Our engineers on-site 4-6 weeks
Spare parts (Year 1)	4-5%	Belts, bearings, filters
Operator training	1-2%	2-3 weeks, language-specific
Contingency	5-8%	Recommended buffer

The 500 kg/h tier total project CapEx is USD 580,000-850,000, with equipment scope at USD 380k-520k EXW.

OpEx Structure

OpEx Category	% of Revenue	Notes
Raw potato	38-42%	~USD 0.30/kg, 50% yield
Frying oil	8-11%	Palm oil, with our filtration 12-15 day life
Energy (gas + electric)	6-9%	Lower if grid is cheap
Direct labor	4-7%	Geography-dependent
Packaging materials	5-7%	Bags, cartons
Maintenance and spares	2-3%	After Year 1
Other (water, treatment, QC)	2-3%	–

ROI Illustration

500 kg/h x 14 hr/day x 300 days = 2100 tonnes finished fries/year. Wholesale at USD 1.10-1.30/kg yields revenue of USD 2.3-2.7 million, EBITDA margin 22-28%, payback 24-32 months including civil works, equipment payback 18-24 months. These assume correct line sizing and locked-in raw potato supply.

For a French Fries Production Line in Southeast Asia, palm oil cost advantage and lower labor compress OpEx by 3-4 points. In Africa, diesel surcharges add 2-3 points to energy. Middle East plants benefit from subsidized gas, dropping energy below 5%. For fresh fries, oil falls to 5-7% but cold-chain logistics adds 3-4%. For industrial full-automatic, labor compresses to 3-4% while maintenance rises to 3-4%.

Frequently Asked Questions About French Fries Production Line

How is a French fries line different from a potato chips line?

There is approximately 70% overlap in peeling, washing, and packaging, but a French Fries Production Line uses strip cutting, two-stage blanching, and IQF freezing, while chips use slice cutting, single blanch, and immediate seasoning. Combined lines require 15-20% higher CapEx.

What is the typical investment range?

Total project cost for a French Fries Production Line ranges from USD 280k for a 200 kg/h plant to USD 5M+ for a 3000 kg/h export facility. Equipment is typically 60-65% of CapEx.

What is the smallest viable capacity?

The smallest practical French Fries Production Line for frozen fries is 100 kg/h finished output. Below this, fixed costs for refrigeration and QC do not amortize well. For fresh-cut, 50 kg/h is workable.

Can the line produce both fresh and frozen fries?

Yes, the French Fries Production Line can produce both. Fresh fries skip the IQF tunnel and are packed chilled after par-frying. Changeover to frozen mode takes 30-45 minutes.

What potato varieties work best?

Best for a French Fries Production Line are Russet Burbank, Innovator, Shepody, Lady Claire, or Markies. Target 20%+ dry matter and reducing sugar <0.4% for high yield and color.

What is the project lead time?

For a French Fries Production Line: manufacturing 10-14 weeks, sea shipment 4-6 weeks, installation and commissioning 8-10 weeks. Total lead time is 24-28 weeks from contract to start-up.

What certifications are required for export?

For EU: HACCP, BRCGS or IFS, and EU 2017/2158 acrylamide compliance. For US: FDA 21 CFR 117, FSVP, and a GFSI scheme. Halal and kosher as required.

What is the typical ROI window?

At 14 hr/day x 300 days, producing ~2100 tonnes/year at USD 1.10-1.30/kg wholesale, EBITDA margin 22-28%, equipment payback 18-24 months, total project payback 24-32 months.
