Frozen French Fries Machine: Engineering Guide to a Field-Proven 14-Stage Production Line

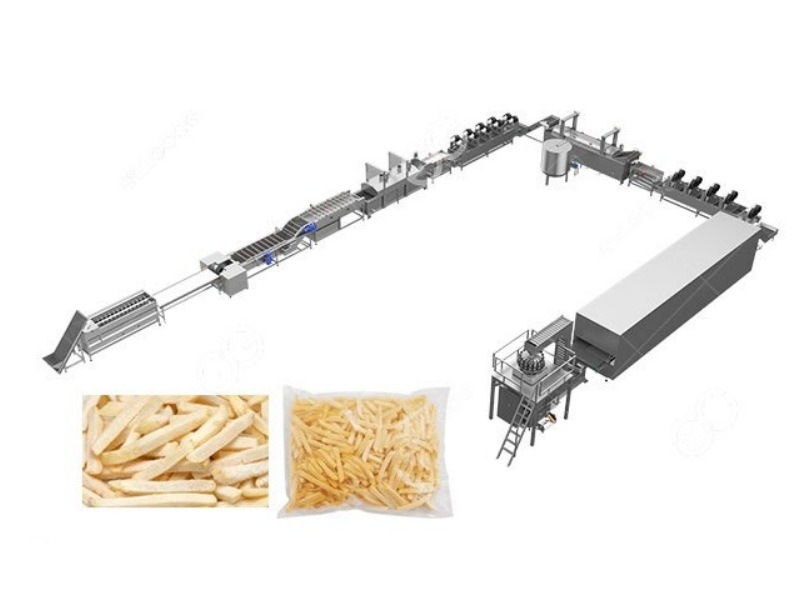

The French Fries Production Line is engineered as a 14-stage continuous process, purpose-built for transforming raw potatoes into frozen or coated fries at industrial scale. Throughput options range from 100 kg per h for local supply up to 5000 kg per h for export-oriented plants. In practice, the peeling, two-stage blanching, and par-frying steps alone account for 80% of final product quality, making process control at these points critical for commercial success and compliance.

This article delivers a comprehensive engineering reference for technical buyers, project managers, and plant designers. Covered topics include process flow, core equipment selection, automation levels, plant layout, food-safety controls, and CapEx/ROI calculations. It is structured to support specification and procurement decisions, from concept through installation, for any scale of Frozen French Fries Machine project. Quantitative benchmarks, standards compliance, and operational trade-offs are presented for robust project evaluation.

Request a tailored line quotation

What Is a Frozen French Fries Machine? Definition, Scope, and Output Tiers

A Frozen French Fries Machine line is an integrated system of continuous-flow machines that convert raw potatoes into three finished formats: frozen par-fried fries (representing 85% of global capacity), fresh-cut chilled fries with 7-10 days shelf life, and fully fried, seasoned, vacuum-packed snack fries. A typical line comprises 14 functional stages, 9-12 standalone machines, and a PLC + HMI control system.

Output Capacity Tiers and Typical Investment

Tier	Throughput	Target Buyer	CapEx EXW	Footprint	Crew
Small Scale	100-300 kg/h	Local QSR supplier	USD 110k-280k	200-400 m^2	6-8
Mid-Range	500-1000 kg/h	Regional brand	USD 380k-750k	600-900 m^2	10-14
Industrial	1500-2000 kg/h	National brand	USD 1.1M-1.8M	1200-1800 m^2	15-20
Large Industrial	3000+ kg/h	Export-oriented producer	USD 2.5M-5M+	2000-2500 m^2	18-25
Snack/Coated	100-500 kg/h	Branded snack producer	USD 150k-600k	300-700 m^2	8-12

Raw-to-finished yield averages 48-52%. Always confirm whether quoted capacity refers to raw input or finished output to avoid procurement mismatches.

Full Process Flow of a Frozen French Fries Machine

The 14-stage standard sequence is identical across all Frozen French Fries Machine sizes; differences arise from technology choice at each step, not process order.

Key Operating Windows for a 1000 kg per h Frozen Line

Steam peeling: 1.0-1.6 MPa saturated steam, peel loss <=8%
Strip cutting: 6×6 mm or 9×9 mm, hydro-cutting at 3 kg/cm^2
First blanching: 90 deg C x 3-5 minutes (polyphenol oxidase inactivation)
Second blanching: 60 deg C x 1-2 minutes (color stabilization, SAPP uptake)
Hot-air drying: 8-10% surface moisture removal
Par-frying: 175-180 deg C x 50-140 seconds depending on strip thickness
De-oiling: vibratory + air-knife, target oil content <8% on dry matter
IQF freezing: -35 deg C chamber, -18 deg C core temperature at exit

First blanching at 90 deg C is selected because above 92 deg C, surface starch gelatinizes, causing oil pickup spikes during par-frying. The 60 deg C second blanch is the SAPP absorption window, preventing gray-blue discoloration. These parameters determine compliance with McDonald specifications and equivalent international buyer standards.

For a Frozen French Fries Machine, the process always finishes with IQF freezing at -35 deg C, targeting -18 deg C at core, followed by bulk or retail packing. In industrial lines, optical color sorting operates at 2 m per s belt speed to reject defects, while dual-tank blanchers with PID control separate shelf-stable product from short-life output. These controls ensure color, texture, and food-safety compliance at scale.

Core Equipment Breakdown of a Frozen French Fries Machine

Major Frozen French Fries Machine equipment specifications scale directly with output tier, from compact lines to large industrial installations.

Peeling: Brush vs Steam

Brush roller peelers (for lines below 500 kg/h) use 4.5 kW motors and 9 nylon brush rollers, with 12-15% peel loss. Steam peeling (for 1000 kg/h and above) processes 4-5 t/h raw at 1.0-1.6 MPa and achieves peel loss <=8%, with 14-20 month payback.

Strip Cutting: Mechanical vs Hydraulic

Mechanical cutters provide 7-10 mm adjustable width at 200-300 kg/h per unit (1.5 kW). Hydro-cutting is preferred above 1500 kg/h, using 3 kg/cm^2 high-pressure water, interchangeable 6×6/9×9 heads, and delivering 3000-5000 kg/h continuous throughput.

Blanching: Single-Stage vs Two-Stage

Small lines use a single electrically-heated blancher (36 kW). Industrial lines run two-stage, steam-heated blanchers with hydraulic belt-lift, separate temperature/time controls, and inline SAPP dosing. Two-stage architecture is essential for 12-month shelf life, while single-stage is limited to 90-day color stability.

Par-Frying: The OpEx Battlefield

External gas heat exchanger 1.2 million kcal/h, multi-fuel (natural gas/LPG/diesel/heavy oil/methanol)
Dual coarse filters 500 mm dia, A/B redundant, 12.5 m^3/h circulation
Inline fine filter 80 L/min, 0.3-0.37 MPa, 2 paper filters/day
Vertical tube oil cooler cuts post-shift cleaning by 60-70%
Tail scraper, side smoke hood, 5 cm aluminum-silicate insulation

This configuration extends oil life from 3-4 days to 12-15 days, saving USD 180,000-240,000 per year in palm oil cost on a 3000 kg/h Frozen French Fries Machine line.

IQF Freezing

Mid-range plant IQF units use a compact cabinet (8000x2200x2300 mm, 125 HP semi-hermetic screw compressor, 250 kW installed, +/-2 deg C). Industrial lines specify fluidized-bed tunnel freezers with 120-150 mm B1-grade polyurethane panels (>=40 kg/m^3), variable-pitch evaporators, and 4:1 ammonia or freon circulation.

For a Frozen French Fries Machine at 1000 kg/h and above, the optimal configuration is steam peeling, hydro-cutter, dual-tank steam blanch, par-fryer with external heat exchanger, and fluidized-bed tunnel IQF. Investment: USD 1.1-1.6M EXW, with 3-6 operator SCADA control, supporting 24/7 industrial output, full automation, and compliance with international standards.

Six Engineering Advantages Built Into Our Frozen French Fries Machine

Key engineering advantages of a Frozen French Fries Machine become apparent after 12 months of production, impacting cost, shelf life, and compliance.

1. Dual-Stage Steam-Heated Blanching with Inline SAPP Dosing

Dual-tank blanchers with PID temperature and time control, plus inline SAPP dosing at 0.3-0.5% w/w, prevent color drift and acrylamide formation.

Result: 12-month frozen shelf life without color drift, acrylamide below EU 500 microgram/kg threshold.

2. 1.2 Million Kcal External Gas Heat Exchanger

Fryers are heated by external gas exchangers, supporting natural gas, LPG, diesel, or heavy oil without hardware modification, and minimizing thermal stress on fryer body.

Result: 30-40% extended fryer body life, fuel flexibility for unreliable gas markets.

3. Dual-Redundant Coarse Filter Plus Inline Fine Filter

Two-stage oil filtration (A/B coarse filter, inline fine paper filter) removes fines and extends oil life, reducing TPM and annual oil replacement cycles.

Result: TPM held at 12-16% for 12-15 days versus 3-4 day industry average, USD 180,000-240,000 saved per year on a 3000 kg/h line.

4. Vertical Tube Oil Cooler for Post-Shift Cleaning

Integrated oil cooler reduces oil temperature after production, enabling faster and safer post-shift cleaning, and lowering downtime.

Result: 200+ extra production hours per year.

5. Hydro-Cutter with Interchangeable Cutting Heads

Hydro-cutter modules support rapid changeover between 6×6 mm, 9×9 mm, crinkle, wedge, and shoestring formats, without requiring re-engineering of the line.

Result: 6×6/9×9/crinkle/wedge/shoestring format flexibility without re-engineering.

6. Fluidized-Bed IQF with Variable Fin-Spacing Evaporator

IQF tunnel with adjustable evaporator fin spacing minimizes frost build-up, extending defrost intervals and reducing refrigeration energy consumption.

Result: Defrost intervals extended from 6-8 hours to 18-24 hours, lowering refrigeration OpEx.

Get equipment list for your output

Automation Levels: Manual, Semi-Automatic, and Fully Automatic

Automation level is the most misunderstood decision in Frozen French Fries Machine projects. First-time buyers often over-automate, or under-automate (saving 25% CapEx but losing 40% OpEx within 18 months). Correctly sizing automation is critical for ROI.

Three-Tier Comparison

Dimension	Semi-Automatic	Mostly Automatic	Fully Automatic
Typical throughput	100-300 kg/h	300-1000 kg/h	1000-5000+ kg/h
Operators required	8-12	6-10	3-6 per shift
Control system	Local switches + relay	PLC + HMI per machine	Centralized PLC + SCADA
Output consistency	+/-8-12%	+/-4-6%	+/-2-3%
CapEx range	USD 110k-280k	USD 380k-750k	USD 1.1M-5M+
OEE achievable	55-65%	70-78%	82-88%
ROI window	14-24 months	18-28 months	24-36 months
Best fit	Local QSR	Regional brand	Export, 24/7 ops

The Decision Heuristic We Use With Buyers

If fully-burdened operator cost is below USD 350/month and target throughput under 500 kg/h, semi-automatic is optimal. If operator cost is at least USD 600/month or export markets are targeted, fully automatic is the only sustainable option. In Africa and South Asia, mostly automatic is common for startup, upgrading modules after 3-4 years.

Why Manufacturers Choose Us for Their Frozen French Fries Machine

For a Frozen French Fries Machine, buyers face a 10-15 year capital decision. The following five capabilities are proven by field results and technical documentation.

1. 15+ Years Field Commissioning

Over 40+ lines delivered in 22 countries (Nigeria, Ghana, Egypt, Algeria, Morocco, Kenya, Saudi Arabia, UAE, Iraq, Indonesia, Vietnam, Philippines, Malaysia, Bangladesh, Pakistan, Russia, Ukraine, Kazakhstan, Mexico, Colombia, India, Brazil). Our engineers remain on-site for 4-6 weeks until full commissioning.

2. Process Engineering Beyond Equipment Supply

Every Frozen French Fries Machine project includes raw material spec packet (variety, dry matter, reducing sugar, storage), SAPP dosing curve, blanch validation, TPM monitoring schedule, and IQF core temperature SOP. These support McDonald, Carrefour, Lulu spec compliance.

3. Multi-Fuel Flexibility for Emerging Markets

The external gas heat exchanger on our lines runs natural gas, LPG, diesel, heavy oil, or methanol without hardware modification. Diesel is standard in West Africa, while LPG is preferred in MENA for seasonal cost efficiency.

4. Inline Filtration That Triples Oil Life

Every par-fryer above 500 kg/h includes dual-redundant coarse filter plus inline fine filter as standard. On a 3000 kg/h line, this saves USD 180,000-240,000 in oil cost per year.

5. Upgrade-Path Layout Design

Every plant layout for a Frozen French Fries Machine reserves physical footprint and utility tap-offs for future modules. Upgrades can be installed into a reserved bay without scrapping the original investment.

Plant Layout and Utility Requirements for a Frozen French Fries Machine

The most costly mistake in Frozen French Fries Machine projects is locking in equipment before finalizing layout, utility loads, and civil tolerances. Workshops often end up undersized by 15%.

Workshop Layout Principles

One-way material flow: Raw potatoes enter dirty zone, then wet zone (cut/blanch/dry), hot zone (par-fry), clean zone (cool/IQF/pack). No backtracking.
Clean/dirty zoning: Separate staff uniforms, door entries, break rooms. Enables BRC and IFS audits to pass first time.
Overhead utilities: Steam, air, water, and power run above equipment; floor drains pitched 1.5-2% toward collection points.

Utility Load Reference for 1000 kg per h Frozen Line

Utility	Demand	Notes
Installed electrical	180-220 kW	380V/50Hz, 3-phase + N
Natural gas	95-120 m^3/h	Gas-fired par-fryer + steam boiler
Process water	14-18 m^3/h	Soft, <=200 ppm hardness
Saturated steam	1.5-2.0 t/h	0.7-0.8 MPa from 2 t boiler
Compressed air	1.5-2.0 m^3/min	0.6 MPa, dry, oil-free
Refrigeration load	180-220 kW	For IQF tunnel, ammonia or freon
Wastewater	12-15 m^3/h	BOD 1800-2400 mg/L, requires pre-treatment

For a 3000 kg/h Frozen French Fries Machine line, scale linearly to 350 kW electrical, 280 m^3/h gas, 40 m^3/h water, 4 t/h steam, and 2000-2500 m^2 footprint.

Quality, Food Safety, and Certifications

Frozen fries are a globally traded commodity, with procurement by EU retail, US foodservice, GCC supermarkets, and African export buyers requiring documented food-safety compliance for every Frozen French Fries Machine line.

Certification Stack

HACCP: Mandatory worldwide
ISO 22000: Quality management system framework
BRCGS Food Safety Issue 9: UK and most EU private-label retailers
IFS Food: German, French, Italian retailers
FDA 21 CFR 117: US market compliance
GCC Halal Compliance: Middle East markets
EAC TR CU 021/2011: Russia, Belarus, Kazakhstan, EAEU

Line carries CE marking and PED 2014/68/EU compliance for all pressurized components.

Six Critical Quality Control Points (KQCPs)

KQCP-1 Raw potato sugar control: Reducing sugar <0.4% (target 0.3%). Recommend in-line refractometry plus 14-21 day storage at 7-9 deg C.

KQCP-2 Two-stage blanch validation: Polyphenol oxidase should test negative on peroxidase assay after 90 deg C stage, otherwise color failures appear after 60-90 days frozen storage.

KQCP-3 SAPP dosing accuracy: 0.3-0.5% w/w in second blanch tank, monitored by daily titration.

KQCP-4 Acrylamide control: EU Regulation 2017/2158. Hold par-frying <=180 deg C, validate <=500 microgram/kg.

KQCP-5 Frying oil TPM: Test daily; replace before TPM exceeds 24%. Inline filtration holds TPM at 12-16% for 12-15 days.

KQCP-6 IQF core temperature: Target <=-18 deg C at tunnel exit, validated daily with thermocouple probe.

For an industrial Frozen French Fries Machine, expect full BRCGS Issue 9 documentation, 3-year acrylamide trend data, and lot-level traceability. Audit packs include all CCPs, daily logs, and recall simulation records to pass private label and export audits.

Real-World Project Cases We Have Delivered

The following three anonymized cases illustrate technical and commercial delivery of Frozen French Fries Machine projects across diverse markets and capacity tiers.

West Africa 2000 kg per h Industrial Line, Lagos Commissioned 2022

Customer A national potato processor supplying both domestic and regional QSR chains.
Challenge Required BRCGS certification, fuel flexibility due to unreliable gas grid, and 12-month shelf life for frozen fries.
Solution
- Dual-fuel external heat exchanger (diesel/LPG) for par-fryer
- Dual-stage blancher with inline SAPP dosing for color stability
- Fluidized-bed IQF tunnel and optical sorter at 2 m/s
Outcome
- Achieved BRCGS certification and exported to ECOWAS markets
- Oil life extended to 13 days, saving USD 210,000 per year
Key Lesson Multi-fuel design and process automation are essential for West African industrial fries production.

Southeast Asia 1000 kg per h Mid-Range Line, Surabaya Commissioned 2021

Customer A regional snack food group expanding into frozen fries for retail and foodservice channels.
Challenge Needed high OEE, palm oil cost control, and compliance with IFS Food certification for export.
Solution
- PLC/HMI automation and centralized SCADA
- Inline dual-stage oil filtration and vertical tube oil cooler
- Two-stage blanching with SAPP and PID control
Outcome
- OEE improved to 84%, oil cost reduced by 18% annually
- IFS Food audit passed, enabled entry to Singapore and Malaysia markets
Key Lesson Integrated automation and filtration deliver rapid payback in Southeast Asian mid-range plants.

South Asia 3000 kg per h Industrial Line, Pune Commissioned 2023

Customer Large agro-industrial group targeting GCC and EU export with Frozen French Fries Machine output.
Challenge Required HACCP, BRCGS, and GCC Halal compliance, and 24/7 operation with minimal labor.
Solution
- Fully automatic line with centralized SCADA and 4 operator crew
- Fluidized-bed IQF, dual-stage blanch, hydro-cutting, and optical sorting
- Plant layout with reserved bay for future snack line expansion
Outcome
- Exported to UAE and KSA, certified under HACCP and BRCGS
- EBITDA margin reached 27% in Year 2
Key Lesson Design for automation and future upgrades is essential for industrial-scale export projects.

CapEx, OpEx, and ROI Math for a Frozen French Fries Machine

Transparent investment modeling for a 500 kg/h fully automatic Frozen French Fries Machine is based on real project benchmarks and audited costs.

CapEx Breakdown

Item	% of Total	Notes
Process equipment	60%	EXW basis
Civil works and foundations	12-15%	Greenfield vs brownfield
Utility build-out	8-10%	Boiler, transformer, refrigeration
Installation and commissioning	7-9%	Our engineers on-site 4-6 weeks
Spare parts (Year 1)	4-5%	Belts, bearings, filters
Operator training	1-2%	2-3 weeks, language-specific
Contingency	5-8%	Recommended buffer

For a 500 kg/h Frozen French Fries Machine project, total CapEx lands between USD 580,000-850,000, with equipment alone at USD 380k-520k EXW.

OpEx Structure

OpEx Category	% of Revenue	Notes
Raw potato	38-42%	~USD 0.30/kg, 50% yield
Frying oil	8-11%	Palm oil, with our filtration 12-15 day life
Energy (gas + electric)	6-9%	Lower if grid is cheap
Direct labor	4-7%	Geography-dependent
Packaging materials	5-7%	Bags, cartons
Maintenance and spares	2-3%	After Year 1
Other (water, treatment, QC)	2-3%	–

ROI Illustration

500 kg/h x 14 hr/day x 300 days = 2100 tonnes finished fries/year. At wholesale USD 1.10-1.30/kg, revenue is USD 2.3-2.7 million. EBITDA margin is 22-28%, payback is 24-32 months including civil works, 18-24 months for equipment alone. Assumes correctly sized line and secure raw potato supply.

For fully automatic industrial lines, labor compresses to 3-4% of OpEx while maintenance rises to 3-4%. In African markets, diesel fuel adds 2-3 points to energy. Southeast Asia benefits from lower palm oil and labor costs, compressing OpEx by 3-4 points. Middle East plants leverage subsidized gas, dropping energy below 5%. These impact ROI for each Frozen French Fries Machine project.

Frequently Asked Questions About Frozen French Fries Machine

How is a French fries line different from a potato chips line?

70% of peeling, washing, and packaging hardware overlaps. However, cutting (strip vs slice), blanching (two-stage vs single), par-frying (50-140 sec vs 3-3.5 min), and freezing (IQF vs immediate seasoning) are fundamentally different. Combined lines add 15-20% to CapEx.

What is the typical investment range?

Total project cost for a Frozen French Fries Machine spans from USD 280k for a 200 kg/h plant to USD 5M+ for a 3000 kg/h industrial facility. Equipment alone is typically 60-65% of total CapEx.

What is the smallest viable capacity?

100 kg/h finished output is practical minimum for a frozen plant. Below this, fixed costs (refrigeration, packaging, QC lab) do not amortize. For fresh-cut, 50 kg/h is achievable with simplified equipment.

Can the line produce both fresh and frozen fries?

Yes, a Frozen French Fries Machine can switch to fresh fries by skipping the IQF tunnel and packing into chilled cartons post par-frying. Changeover between formats is typically 30-45 minutes.

What potato varieties work best?

Russet Burbank (US/Canada), Innovator (EU), Shepody (early-season), Lady Claire or Markies are recommended for Frozen French Fries Machine lines. Key is 20%+ dry matter and reducing sugar <0.4%.

What is the project lead time?

Manufacturing is 10-14 weeks, sea shipment 4-6 weeks, installation and training 8-10 weeks. Total lead time from contract to commercial production is 24-28 weeks for most Frozen French Fries Machine projects.

What certifications are required for export?

For EU: HACCP plus BRCGS or IFS and EU 2017/2158 acrylamide compliance. For US: FDA 21 CFR 117 plus FSVP and a GFSI-recognized scheme. Halal and kosher as market-specific requirements.

What is the typical ROI window?

At 14 hr/day x 300 days, producing about 2100 tonnes/year at USD 1.10-1.30/kg wholesale, EBITDA margin is 22-28%, equipment payback 18-24 months, total project payback 24-32 months.

-Supply Custom solutions for your business

-With 1500 Global Customers
