French Fries Production Line: Engineering Guide for Frozen, Fresh, and Coated Fry Plants
The French Fries Production Line is a 14-stage continuous process engineered to convert raw potatoes into finished fries at throughputs ranging from 100 kg per h to 5000 kg per h. Applying the 80/20 rule, peeling, two-stage blanching, and par-frying account for 80 percent of final product quality. These steps are critical for texture, color, and shelf life, regardless of capacity tier or market destination.
This article details the French Fries Production Line end-to-end: process flow, core equipment, automation levels, plant layout, food-safety controls, and CapEx ROI calculations. It is structured for technical buyers, project managers, and plant engineers seeking evidence-based guidance for procurement, expansion, or greenfield investment. The focus is on quantifiable outcomes, regulatory compliance, and operational reliability over a 10-15 year capital horizon.
What Is a French Fries Production Line? Definition, Scope, and Output Tiers
A French Fries Production Line is an integrated set of continuous-flow machines transforming raw potatoes into three finished formats: frozen par-fried fries (85% of global capacity), fresh-cut chilled fries (7-10 days shelf life), and fully fried seasoned snack fries. Typical configurations integrate 14 functional stages, 9-12 standalone machines, and a PLC + HMI control system.
Output Capacity Tiers and Typical Investment
| Tier | Throughput | Target Buyer | CapEx EXW | Footprint | Crew |
|---|---|---|---|---|---|
| Small Scale | 100-300 kg/h | Local QSR supplier | USD 110k-280k | 200-400 m2 | 6-8 |
| Mid-Range | 500-1000 kg/h | Regional brand | USD 380k-750k | 600-900 m2 | 10-14 |
| Industrial | 1500-2000 kg/h | National brand | USD 1.1M-1.8M | 1200-1800 m2 | 15-20 |
| Large Industrial | 3000+ kg/h | Export-oriented producer | USD 2.5M-5M+ | 2000-2500 m2 | 18-25 |
| Snack/Coated | 100-500 kg/h | Branded snack producer | USD 150k-600k | 300-700 m2 | 8-12 |
Raw-to-finished yield is typically 48-52%; always confirm whether quoted capacity refers to raw input or finished output to avoid procurement errors.

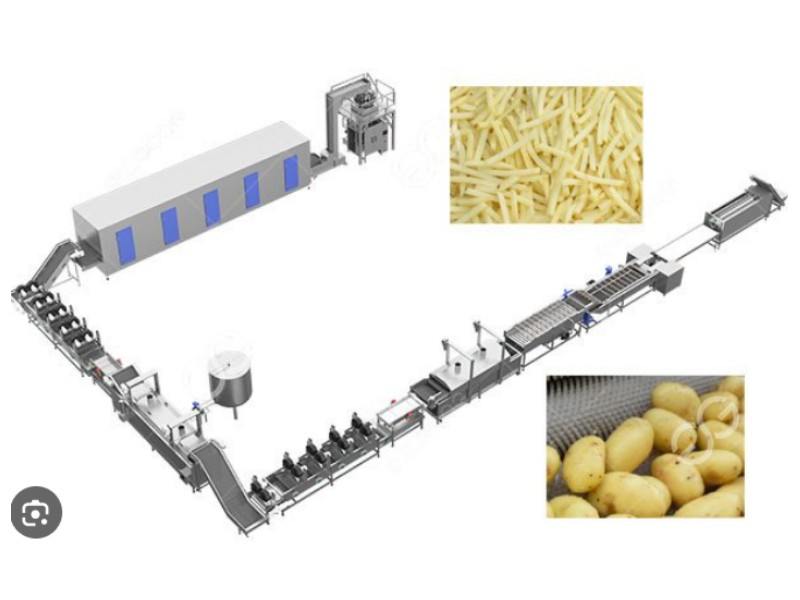

Full Process Flow of a French Fries Production Line
The 14-stage standard sequence for a French Fries Production Line is consistent across all capacity tiers; technology selection at each stage determines throughput, yield, and compliance.
Key Operating Windows for a 1000 kg per h Frozen Line
- Steam peeling: 1.0-1.6 MPa saturated steam, peel loss <=8%
- Strip cutting: 6×6 mm or 9×9 mm, hydro-cutting at 3 kg/cm2
- First blanching: 90 deg C x 3-5 minutes (polyphenol oxidase inactivation)
- Second blanching: 60 deg C x 1-2 minutes (color stabilization, SAPP uptake)
- Hot-air drying: 8-10% surface moisture removal
- Par-frying: 175-180 deg C x 50-140 seconds depending on strip thickness

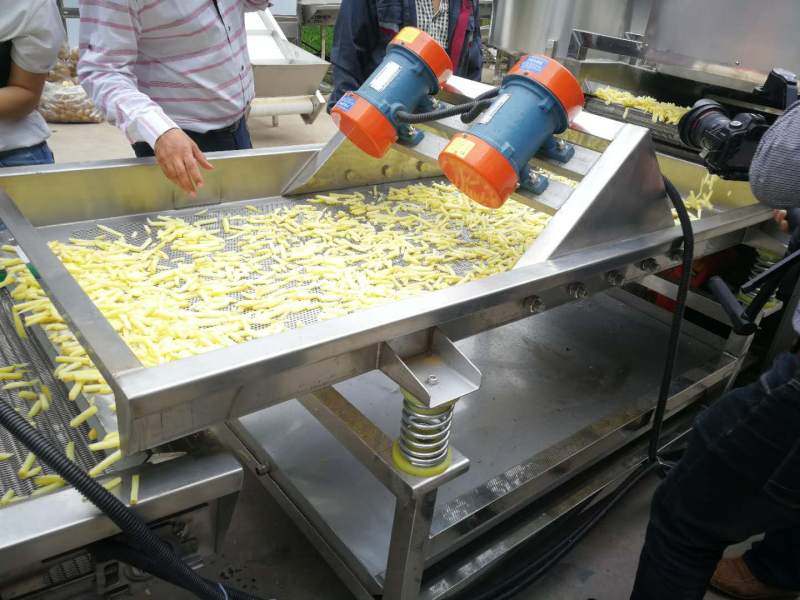

- De-oiling: vibratory + air-knife, target oil content <8% on dry matter
- IQF freezing: -35 deg C chamber, -18 deg C core temperature at exit
The engineering rationale is clear: first blanching at 90 deg C (not 95 deg C) prevents surface starch gelatinization, which otherwise causes excessive oil uptake. Second blanching at 60 deg C is the optimal window for SAPP absorption, preventing gray-blue discoloration and ensuring McDonald specification compliance.
For a French Fries Production Line, industrial scale plants implement optical color sorting at 2 m per s belt speed and dual-tank blanching with PID temperature control. This approach delivers consistent fry color and texture, meeting export and QSR demands. Two-stage blanching, rapid cooling, and fluidized-bed IQF freezing ensure product stability for 12-month frozen storage.
Core Equipment Breakdown of a French Fries Production Line
Major equipment specifications for the French Fries Production Line scale with output, but architecture remains consistent across tiers.
Peeling: Brush vs Steam
Brush roller peelers (4.5 kW, 9 nylon rollers, 12-15% peel loss) suit lines below 500 kg/h. Steam peeling (4-5 t/h raw, 1.0-1.6 MPa, peel loss <=8%) is standard above 1000 kg/h, providing 14-20 month payback via higher yield and labor savings.
Strip Cutting: Mechanical vs Hydraulic
Mechanical cutters offer 7-10 mm adjustable width, 200-300 kg/h per unit, 1.5 kW. Hydro-cutting (3 kg/cm2 high-pressure water, 6×6 / 9×9 mm interchange, 3000-5000 kg/h continuous) dominates above 1500 kg/h.
Blanching: Single-Stage vs Two-Stage
Small lines use a single electrically-heated blancher (36 kW). Industrial lines run two-stage steam-heated blanchers with hydraulic belt lift, separate temp/time controls, and inline SAPP dosing. Two-stage setup is critical for 12-month shelf life and color retention versus 90-day color failure on single-stage.
Par-Frying: The OpEx Battlefield
- External gas heat exchanger 1.2 million kcal/h, multi-fuel (natural gas/LPG/diesel/heavy oil/methanol)
- Dual coarse filters 500 mm dia, A/B redundant, 12.5 m3/h circulation
- Inline fine filter 80 L/min, 0.3-0.37 MPa, 2 paper filters/day
- Vertical tube oil cooler cuts post-shift cleaning by 60-70%
- Tail scraper, side smoke hood, 5 cm aluminum-silicate insulation
This configuration extends oil life from 3-4 days to 12-15 days, saving USD 180,000-240,000 per year in palm oil cost on a 3000 kg/h line.
IQF Freezing
Mid-range plant IQF: compact cabinet 8000x2200x2300 mm, 125 HP semi-hermetic screw compressor, 250 kW installed, +/-2 deg C. Industrial: fluidized-bed tunnel freezers, 120-150 mm B1-grade polyurethane panels (>=40 kg/m3), variable-pitch evaporators, 4:1 ammonia or freon circulation.
For the French Fries Production Line at industrial scale, the preferred architecture is steam peeling, hydro-cutter, dual-tank steam blanching, and fluidized-bed tunnel IQF, priced at USD 1.1-1.6M EXW with 3-6 operator SCADA control. This configuration maximizes yield, minimizes labor, and ensures export compliance.
Six Engineering Advantages Built Into Our French Fries Production Line
Long-term advantages of the French Fries Production Line become evident after 12 months of production, impacting OpEx, quality, and compliance.
1. Dual-Stage Steam-Heated Blanching with Inline SAPP Dosing
Two separate blanch tanks, each with PID control, and inline sodium acid pyrophosphate dosing ensure uniform color and enzyme inactivation.
Result: 12-month frozen shelf life without color drift, acrylamide below EU 500 microgram/kg threshold.
2. 1.2 Million Kcal External Gas Heat Exchanger
External exchanger decouples burner from oil, enabling multi-fuel operation and reducing thermal stress on fryer body.
Result: 30-40% extended fryer body life, fuel flexibility for unreliable gas markets.
3. Dual-Redundant Coarse Filter Plus Inline Fine Filter
Continuous filtration system holds total polar materials (TPM) at optimal range, reducing oil degradation and changeover frequency.
Result: TPM held at 12-16% for 12-15 days versus 3-4 day industry average, USD 180,000-240,000 saved per year on a 3000 kg/h line.
4. Vertical Tube Oil Cooler for Post-Shift Cleaning
Rapid cooling design allows safe, efficient cleaning at end of shift, minimizing downtime and labor.
Result: 200+ extra production hours per year.
5. Hydro-Cutter with Interchangeable Cutting Heads
Tool-less changeover between 6×6, 9×9, crinkle, wedge, and shoestring formats in under 45 minutes.
Result: 6×6/9×9/crinkle/wedge/shoestring format flexibility without re-engineering.
6. Fluidized-Bed IQF with Variable Fin-Spacing Evaporator
Adjustable evaporator fin spacing extends defrost intervals and improves energy efficiency for large-scale freezing.
Result: Defrost intervals from 6-8 hours to 18-24 hours, lower refrigeration OpEx.
Automation Levels: Manual, Semi-Automatic, and Fully Automatic
Automation level selection in a French Fries Production Line is often misjudged. First-time buyers may over-automate or under-automate, saving 25% CapEx but giving up 40% OpEx within 18 months due to labor or downtime.
Three-Tier Comparison
| Dimension | Semi-Automatic | Mostly Automatic | Fully Automatic |
|---|---|---|---|
| Typical throughput | 100-300 kg/h | 300-1000 kg/h | 1000-5000+ kg/h |
| Operators required | 8-12 | 6-10 | 3-6 per shift |
| Control system | Local switches + relay | PLC + HMI per machine | Centralized PLC + SCADA |
| Output consistency | +/-8-12% | +/-4-6% | +/-2-3% |
| CapEx range | USD 110k-280k | USD 380k-750k | USD 1.1M-5M+ |
| OEE achievable | 55-65% | 70-78% | 82-88% |
| ROI window | 14-24 months | 18-28 months | 24-36 months |
| Best fit | Local QSR | Regional brand | Export, 24/7 ops |
The Decision Heuristic We Use With Buyers
If fully-burdened operator cost is below USD 350/month and target throughput under 500 kg/h, semi-automatic is justified. If operator cost is USD 600/month or export is targeted, fully automatic is the only sustainable model. African and South Asian plants often start mostly automatic and upgrade modules in years 3-4.
Why Manufacturers Choose Us for Their French Fries Production Line
A French Fries Production Line is a 10-15 year capital decision. We offer five proven capabilities, each backed by technical evidence and field results.
1. 15+ Years Field Commissioning
With 40+ French Fries Production Lines delivered in 22 countries, every project is commissioned by our engineers on-site for 4-6 weeks. Recent deployments include Nigeria, Kenya, Vietnam, India, and Brazil.
2. Process Engineering Beyond Equipment Supply
Each project includes a raw material spec packet (variety, dry matter, reducing sugar), SAPP dosing curve, two-stage blanch validation, TPM monitoring, and IQF SOP. These are required for McDonald, Carrefour, and Lulu spec compliance.
3. Multi-Fuel Flexibility for Emerging Markets
Our external gas heat exchanger runs on natural gas, LPG, diesel, heavy oil, and methanol without hardware modification. West African lines run diesel year-round; MENA plants switch between LPG and gas seasonally.
4. Inline Filtration That Triples Oil Life
Dual-redundant coarse filter and inline fine filter are standard above 500 kg/h. On a 3000 kg/h line, this saves USD 180,000-240,000 in palm oil annually.
5. Upgrade-Path Layout Design
Every French Fries Production Line layout reserves space and utility connections for future module upgrades, avoiding costly rework or scrapping during expansion.
Plant Layout and Utility Requirements for a French Fries Production Line
The most expensive mistake in a French Fries Production Line project is locking in equipment before finalizing layout, utility loads, and civil tolerances. Workshops can end up 15% undersized, impacting expansion and workflow.
Workshop Layout Principles
- One-way material flow: Raw potatoes enter dirty zone, then wet zone (cut/blanch/dry), then hot zone (par-fry), then clean zone (cool/IQF/pack). No backtracking.
- Clean/dirty zoning: Separate staff uniforms, door entries, break rooms. Enables BRC and IFS audits to pass first time.
- Overhead utilities: Steam, air, water, power run above equipment; floor drains pitched 1.5-2% toward collection points.
Utility Load Reference for 1000 kg per h Frozen Line
| Utility | Demand | Notes |
|---|---|---|
| Installed electrical | 180-220 kW | 380V/50Hz, 3-phase + N |
| Natural gas | 95-120 m3/h | Gas-fired par-fryer + steam boiler |
| Process water | 14-18 m3/h | Soft, <=200 ppm hardness |
| Saturated steam | 1.5-2.0 t/h | 0.7-0.8 MPa from 2 t boiler |
| Compressed air | 1.5-2.0 m3/min | 0.6 MPa, dry, oil-free |
| Refrigeration load | 180-220 kW | For IQF tunnel, ammonia or freon |
| Wastewater | 12-15 m3/h | BOD 1800-2400 mg/L, requires pre-treatment |
For a 3000 kg/h industrial French Fries Production Line: 350 kW electrical, 280 m3/h gas, 40 m3/h water, 4 t/h steam, and 2000-2500 m2 footprint scale linearly.
Quality, Food Safety, and Certifications
Frozen fries are a globally traded commodity. The French Fries Production Line must meet documented food-safety requirements for EU retail, US foodservice, GCC supermarkets, and African export markets.
Certification Stack
- HACCP: Mandatory worldwide
- ISO 22000: Quality management system framework
- BRCGS Food Safety Issue 9: UK and most EU private-label retailers
- IFS Food: German, French, Italian retailers
- FDA 21 CFR 117: US market compliance
- GCC Halal Compliance: Middle East markets
- EAC TR CU 021/2011: Russia, Belarus, Kazakhstan, EAEU
The French Fries Production Line carries CE marking and PED 2014/68/EU compliance for all pressurized components.
Six Critical Quality Control Points (KQCPs)
KQCP-1 Raw potato sugar control: Reducing sugar <0.4% (target 0.3%). Recommend in-line refractometry plus 14-21 day storage at 7-9 deg C.
KQCP-2 Two-stage blanch validation: Polyphenol oxidase should test negative on peroxidase assay after 90 deg C stage, otherwise color failures appear after 60-90 days frozen storage.
KQCP-3 SAPP dosing accuracy: 0.3-0.5% w/w in second blanch tank, monitored by daily titration.
KQCP-4 Acrylamide control: EU Regulation 2017/2158. Hold par-frying <=180 deg C, validate <=500 microgram/kg.
KQCP-5 Frying oil TPM: Test daily; replace before TPM exceeds 24%. Inline filtration holds TPM at 12-16% for 12-15 days.
KQCP-6 IQF core temperature: Target <=-18 deg C at tunnel exit, validated daily with thermocouple probe.
For an industrial French Fries Production Line, full BRCGS Issue 9 documentation, 3-year acrylamide trend data, and lot-level traceability are standard. This supports audits by EU, US, and GCC buyers and is a prerequisite for major QSR and supermarket contracts.
Real-World Project Cases We Have Delivered
Below are three representative French Fries Production Line cases, anonymized but with full technical and commercial context for practical benchmarking.
West Africa 2000 kg per h Industrial Line, Lagos Commissioned 2021
- Customer: Large Nigerian QSR supplier expanding to export-grade frozen fries.
- Challenge: Unreliable natural gas supply and strict EU BRCGS audit requirements.
- Solution:
- Multi-fuel external heat exchanger (natural gas/diesel/LPG switchable).
- Dual-tank steam blanching with inline SAPP dosing and PID control.
- Fluidized-bed IQF freezer with variable fin-spacing evaporator.
- Outcome:
- 12-month color stability, acrylamide <400 microgram/kg (EU 2017/2158).
- Oil change interval extended from 3 days to 14 days, USD 180,000/year saved.
- Key Lesson: Multi-fuel flexibility and full BRCGS documentation are non-negotiable at industrial scale.
Southeast Asia 1000 kg per h Mid-Range Line, Surabaya Commissioned 2019
- Customer: Indonesian regional brand targeting QSR and supermarket supply.
- Challenge: Palm oil volatility and skilled labor shortages.
- Solution:
- Inline dual filtration (coarse + fine) to extend oil life.
- Centralized PLC + HMI automation, reducing operator headcount.
- Workshop layout with overhead utilities and clean/dirty zones for BRCGS readiness.
- Outcome:
- Frying oil changed every 13 days (industry average 4), USD 80,000/year savings.
- Passed BRCGS Issue 9 and IFS Food audits on first attempt.
- Key Lesson: Automation and filtration directly translate to OpEx and audit success.
South Asia 3000 kg per h Industrial Line, Pune Commissioned 2022
- Customer: Indian national brand entering GCC and EU export markets.
- Challenge: 24/7 operation with seasonal potato quality variation.
- Solution:
- Optical color sorting with 2 m/s belt, reject to rework loop.
- SCADA-monitored blanching and par-frying with full batch traceability.
- IQF freezer with ammonia system and 18-24 hr defrost intervals.
- Outcome:
- 99.4% export-grade batches, 22-28% EBITDA margin sustained year-round.
- IFS Food, GCC Halal, and EAC TR CU 021/2011 certifications achieved.
- Key Lesson: Engineering for traceability and seasonal adjustment is critical for year-round export.
CapEx, OpEx, and ROI Math for a French Fries Production Line
The investment model below is based on a 500 kg/h fully automatic French Fries Production Line using real project costs and operational data.
CapEx Breakdown
| Item | % of Total | Notes |
|---|---|---|
| Process equipment | 60% | EXW basis |
| Civil works and foundations | 12-15% | Greenfield vs brownfield |
| Utility build-out | 8-10% | Boiler, transformer, refrigeration |
| Installation and commissioning | 7-9% | Our engineers on-site 4-6 weeks |
| Spare parts (Year 1) | 4-5% | Belts, bearings, filters |
| Operator training | 1-2% | 2-3 weeks, language-specific |
| Contingency | 5-8% | Recommended buffer |
For a 500 kg/h line, total project CapEx is USD 580,000-850,000, with equipment scope USD 380k-520k EXW.
OpEx Structure
| OpEx Category | % of Revenue | Notes |
|---|---|---|
| Raw potato | 38-42% | ~USD 0.30/kg, 50% yield |
| Frying oil | 8-11% | Palm oil, with our filtration 12-15 day life |
| Energy (gas + electric) | 6-9% | Lower if grid is cheap |
| Direct labor | 4-7% | Geography-dependent |
| Packaging materials | 5-7% | Bags, cartons |
| Maintenance and spares | 2-3% | After Year 1 |
| Other (water, treatment, QC) | 2-3% | – |
ROI Illustration
500 kg/h x 14 hr/day x 300 days = 2100 tonnes finished fries/year. At wholesale USD 1.10-1.30/kg, revenue is USD 2.3-2.7 million. EBITDA margin 22-28%, payback 24-32 months including civil and utility works. Equipment-only payback is 18-24 months. Assumes stable raw potato supply and correctly sized line.
For industrial fully-automatic French Fries Production Line projects, direct labor compresses to 3-4% while maintenance rises to 3-4%. In Africa, diesel surcharges add 2-3 points to energy. Southeast Asia benefits from lower labor and palm oil, compressing OpEx by 3-4 points. Middle East subsidized gas drops energy below 5%. OpEx optimization is scenario-dependent.
Frequently Asked Questions About French Fries Production Line
How is a French fries line different from a potato chips line?
About 70% of the process overlaps in peeling, washing, and packaging, but strip cutting, two-stage blanching, par-frying (50-140 sec vs 3-3.5 min), and IQF freezing are unique to fries. Combined lines add 15-20% CapEx.
What is the typical investment range?
Total project cost for a French Fries Production Line ranges from USD 280k for a 200 kg/h plant to USD 5M+ for a 3000 kg/h industrial facility. Equipment is typically 60-65% of CapEx.
What is the smallest viable capacity?
100 kg/h finished output is the practical minimum for a frozen French Fries Production Line. Below this, fixed costs (refrigeration, QC, packaging) are not amortized. Fresh-cut lines can run at 50 kg/h.
Can the line produce both fresh and frozen fries?

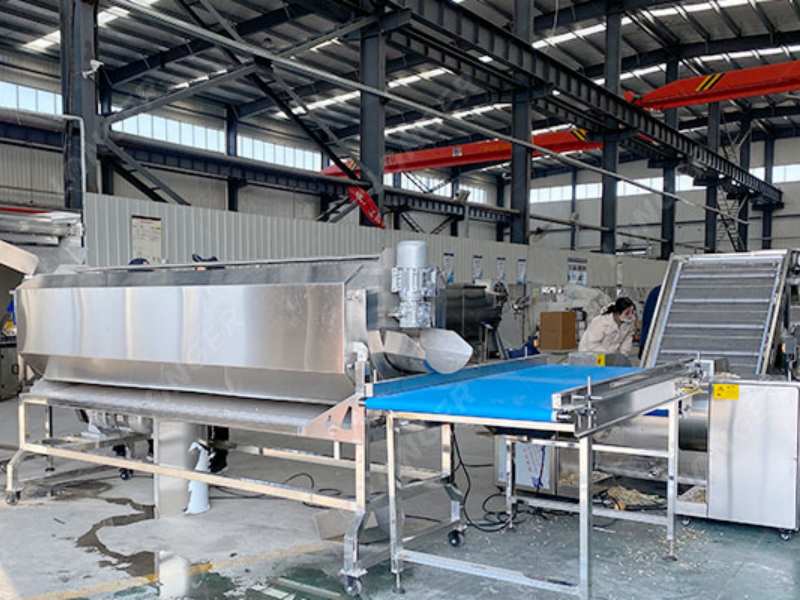

Yes. A French Fries Production Line can skip the IQF stage and pack fresh fries into chilled cartons after par-frying. Format changeover is possible in 30-45 minutes.
What potato varieties work best?
Russet Burbank, Innovator, Shepody, Lady Claire, and Markies are preferred. Look for 20%+ dry matter and reducing sugar below 0.4% for optimal fry quality.
What is the project lead time?
Manufacturing is 10-14 weeks, sea shipment 4-6 weeks, installation and commissioning 8-10 weeks. Total project lead time is 24-28 weeks from contract to commercial production.
What certifications are required for export?
For EU: HACCP plus BRCGS or IFS and EU 2017/2158 acrylamide compliance. For US: FDA 21 CFR 117 and GFSI-recognized scheme. Halal and kosher are market-specific.
What is the typical ROI window?
At 14 hr/day x 300 days, producing about 2100 tonnes/year at USD 1.10-1.30/kg wholesale, EBITDA margin is 22-28%. Equipment payback is 18-24 months, total project payback 24-32 months.
English
Spanish
French
Arabic
Russian
Portuguese
German
Italian
Indonesian
Malay
Uzbek
