French Fries Assembly Line: Engineering Guide for Frozen, Fresh, and Coated Fry Plants
O French Fries Assembly Line is a 14-stage continuous process solution, engineered to transform raw potatoes into finished fries at throughputs from 100 kg per h to 5000 kg per h. Across all plant sizes, the 80/20 rule applies: peeling, two-stage blanching, and par-frying determine 80 percent of the final product quality, impacting color, texture, and shelf life.
This article details every aspect of the French Fries Assembly Line: process flow, core equipment, automation levels, plant layout, food-safety controls, and CapEx ROI calculations. The focus is on technical buyers and project managers seeking evidence-based guidance for procurement, commissioning, and long-term operation of frozen, fresh-cut, and coated fry lines.
What Is a French Fries Assembly Line? Definition, Scope, and Output Tiers

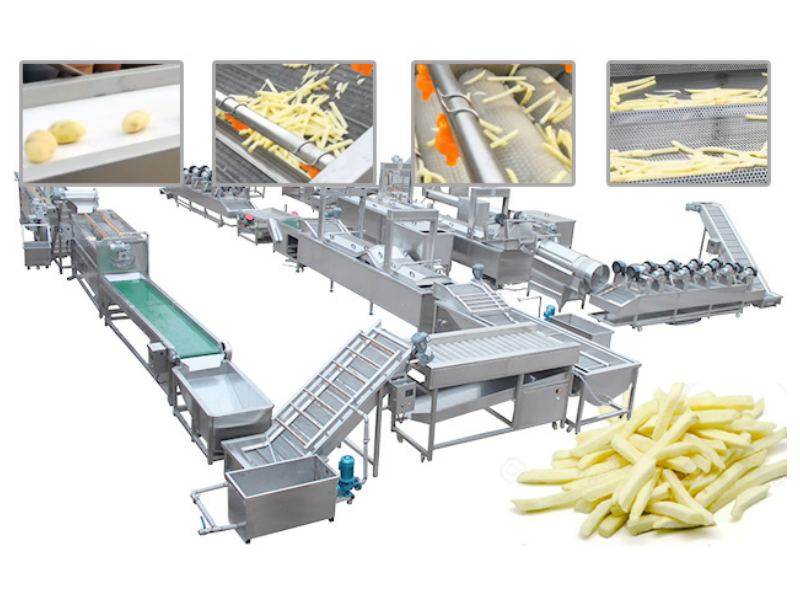

A French Fries Assembly Line is an integrated, continuous-flow system of machines converting raw potatoes into finished fries in three main formats: frozen par-fried fries (85% of global output), fresh-cut chilled fries (7-10 days shelf life), and fully fried seasoned snack fries. Typical lines integrate 14 functional stages, 9-12 machines, and a PLC + HMI control system.
Output Capacity Tiers and Typical Investment
| Tier | Throughput | Target Buyer | CapEx EXW | Footprint | Crew |
|---|---|---|---|---|---|
| Small Scale | 100-300 kg/h | Local QSR supplier | USD 110k-280k | 200-400 m2 | 6-8 |
| Mid-Range | 500-1000 kg/h | Regional brand | USD 380k-750k | 600-900 m2 | 10-14 |
| Industrial | 1500-2000 kg/h | National brand | USD 1.1M-1.8M | 1200-1800 m2 | 15-20 |
| Large Industrial | 3000+ kg/h | Export-oriented producer | USD 2.5M-5M+ | 2000-2500 m2 | 18-25 |
| Snack/Coated | 100-500 kg/h | Branded snack producer | USD 150k-600k | 300-700 m2 | 8-12 |
Typical raw-to-finished yield is 48-52%. Always confirm if quoted capacity refers to raw input or finished output.
Full Process Flow of a French Fries Assembly Line
O 14-stage process flow is standard across all French Fries Assembly Line capacities; the main differences are in the technology selected for each functional step.
Key Operating Windows for a 1000 kg per h Frozen Line
- Steam peeling: 1.0-1.6 MPa saturated steam, peel loss <=8%
- Strip cutting: 6×6 mm or 9×9 mm, hydro-cutting at 3 kg/cm2
- First blanching: 90 deg C x 3-5 minutes (polyphenol oxidase inactivation)
- Second blanching: 60 deg C x 1-2 minutes (color stabilization, SAPP uptake)
- Hot-air drying: 8-10% surface moisture removal
- Par-frying: 175-180 deg C x 50-140 seconds depending on strip thickness
- De-oiling: vibratory + air-knife, target oil content <8% on dry matter
- IQF freezing: -35 deg C chamber, -18 deg C core temperature at exit
The first blanching is held at 90 deg C (not 95 deg C) because above 92 deg C, surface starch gelatinizes and oil pickup spikes. The 60 deg C second blanch is the SAPP absorption window, preventing gray-blue discoloration. These parameters are essential for McDonald specification compliance.
For a French Fries Assembly Line in an industrial context, optical color sorters operate at 2 m per s belt speed, rejecting substandard fries before par-frying. Dual-tank blanchers with PID control ensure precise temperature and SAPP dosing, enabling consistent color and shelf life. This architecture is standard for 1500-3000 kg/h lines, supporting export-grade production.
Core Equipment Breakdown of a French Fries Assembly Line
Major equipment on a French Fries Assembly Line scales in design and specification as output tier increases.
Peeling: Brush vs Steam
Brush roller peelers are suitable for lines below 500 kg/h (4.5 kW, 9 nylon brush rollers, 12-15% peel loss). Steam peeling is standard above 1000 kg/h (4-5 t/h raw, 1.0-1.6 MPa, peel loss <=8%, 14-20 month payback).
Strip Cutting: Mechanical vs Hydraulic
Mechanical cutters offer 7-10 mm adjustable width, 200-300 kg/h per unit, 1.5 kW. Hydro-cutters are used above 1500 kg/h (3 kg/cm2 water, 6×6 / 9×9 mm interchangeable, 3000-5000 kg/h continuous).
Blanching: Single-Stage vs Two-Stage
Small lines use a single electrically-heated blancher (36 kW). Industrial lines deploy two-stage steam-heated blanchers with hydraulic belt-lift, independent time/temperature controls, and inline SAPP dosing. Two-stage blanching separates 12-month shelf life from 90-day color failure.
Par-Frying: The OpEx Battlefield
- External gas heat exchanger 1.2 million kcal/h, multi-fuel (natural gas/LPG/diesel/heavy oil/methanol)
- Dual coarse filters 500 mm dia, A/B redundant, 12.5 m3/h circulation
- Inline fine filter 80 L/min, 0.3-0.37 MPa, 2 paper filters/day
- Vertical tube oil cooler reduces post-shift cleaning by 60-70%
- Tail scraper, side smoke hood, 5 cm aluminum-silicate insulation
This configuration extends oil life from 3-4 days to 12-15 days, saving USD 180,000-240,000 per year in palm oil cost on a 3000 kg/h line.
IQF Freezing
Mid-range plants use cabinet IQF units (8,000×2,200×2,300 mm, 125 HP semi-hermetic screw compressor, 250 kW installed, +/-2 deg C). Industrial lines use fluidized-bed tunnels (120-150 mm polyurethane panels, >=40 kg/m3, variable-pitch evaporators, 4:1 ammonia or freon circulation).
For an industrial French Fries Assembly Line, steam peeler, hydro-cutter, dual-tank steam blancher, and fluidized-bed tunnel freezer are standard. This configuration, at USD 1.1-1.6M EXW, supports 3-6 operator SCADA control and delivers export-compliant fries.
Six Engineering Advantages Built Into Our French Fries Assembly Line
The performance differences of a French Fries Assembly Line become apparent after a full year of production, not at initial startup.
1. Dual-Stage Steam-Heated Blanching with Inline SAPP Dosing
Two-tank blanching with precise SAPP addition stabilizes color, inhibits acrylamide, and supports up to 12-month frozen storage.
Result: 12-month frozen shelf life without color drift, acrylamide below EU 500 microgram/kg threshold.
2. 1.2 Million Kcal External Gas Heat Exchanger
External exchanger design isolates fryer body from combustion, supports multi-fuel operation, and simplifies cleaning/maintenance.
Result: 30-40% extended fryer body life, fuel flexibility for unreliable gas markets.
3. Dual-Redundant Coarse Filter Plus Inline Fine Filter
Frying oil is filtered continuously with A/B redundancy and paper cartridge fine filtration, minimizing TPM rise and oil degradation.
Result: TPM held at 12-16% for 12-15 days versus 3-4 day industry average, USD 180,000-240,000 saved per year on a 3000 kg/h line.
4. Vertical Tube Oil Cooler for Post-Shift Cleaning
Rapid oil cooling after shift end reduces polymerization and enables safe, fast cleaning cycles.
Result: 200+ extra production hours per year.
5. Hydro-Cutter with Interchangeable Cutting Heads
Supports fast tool-less changeover between 6×6, 9×9, crinkle, wedge, and shoestring formats, maximizing line flexibility.
Result: 6×6/9×9/crinkle/wedge/shoestring format flexibility without re-engineering.
6. Fluidized-Bed IQF with Variable Fin-Spacing Evaporator
IQF tunnel design with adjustable evaporator fin spacing extends defrost intervals and reduces refrigeration downtime.
Result: Defrost intervals from 6-8 hours to 18-24 hours, lower refrigeration OpEx.
Automation Levels: Manual, Semi-Automatic, and Fully Automatic
The automation level in a French Fries Assembly Line is often misunderstood. First-time buyers may over-automate, raising CapEx, or under-automate, saving 25% upfront but losing 40% in OpEx within 18 months.
Three-Tier Comparison
| Dimension | Semi-automático | Mostly Automatic | Fully Automatic |
|---|---|---|---|
| Typical throughput | 100-300 kg/h | 300-1000 kg/h | 1000-5000+ kg/h |
| Operators required | 8-12 | 6-10 | 3-6 per shift |
| Control system | Local switches + relay | PLC + HMI per machine | Centralized PLC + SCADA |
| Output consistency | +/-8-12% | +/-4-6% | +/-2-3% |
| CapEx range | USD 110k-280k | USD 380k-750k | USD 1.1M-5M+ |
| OEE achievable | 55-65% | 70-78% | 82-88% |
| ROI window | 14-24 months | 18-28 months | 24-36 months |
| Best fit | Local QSR | Regional brand | Export, 24/7 ops |
The Decision Heuristic We Use With Buyers
If fully-burdened operator cost is below USD 350/month and target output is under 500 kg/h, semi-automatic is optimal. If operator cost is USD 600/month or higher, or export markets are targeted, fully automatic is the only sustainable solution. Many African and South Asian plants start with mostly automatic and upgrade in years 3-4.
Why Manufacturers Choose Us for Their French Fries Assembly Line
Investing in a French Fries Assembly Line is a 10-15 year capital decision. These five credentials set us apart.
1. 15+ Years Field Commissioning
Over 40 lines delivered across 22 countries including Nigeria, Ghana, Egypt, Algeria, Morocco, Kenya, Saudi Arabia, UAE, Iraq, Indonesia, Vietnam, Philippines, Malaysia, Bangladesh, Pakistan, Russia, Ukraine, Kazakhstan, Mexico, Colombia, India, and Brazil. Every line commissioned by our own engineers on-site for 4-6 weeks.
2. Process Engineering Beyond Equipment Supply
Each project includes a raw-material spec packet (variety, dry matter, reducing sugar, storage), SAPP dosing curve, two-stage blanch validation, TPM monitoring schedule, and IQF core-temperature SOP. These ensure compliance with McDonald, Carrefour, and Lulu product specifications.
3. Multi-Fuel Flexibility for Emerging Markets
The external gas heat exchanger operates on natural gas, LPG, diesel, heavy oil, or methanol without hardware modification. West Africa clients run diesel year-round; MENA clients switch seasonally between LPG and natural gas.
4. Inline Filtration That Triples Oil Life
Dual-redundant coarse filter and inline fine filter are standard above 500 kg/h. On a 3000 kg/h line, this saves USD 180,000-240,000 in oil costs every year.
5. Upgrade-Path Layout Design
Every plant layout reserves space and utilities for future modules. At upgrade point, new equipment slots into the reserved bay, protecting your original investment and minimizing downtime.
Plant Layout and Utility Requirements for a French Fries Assembly Line
The most expensive error is locking in a French Fries Assembly Line before finalizing layout, utility loads, and civil tolerances; workshops often end up 15% undersized.
Workshop Layout Principles
- One-way material flow: Raw potatoes enter dirty zone, then wet zone (cut/blanch/dry), then hot zone (par-fry), then clean zone (cool/IQF/pack). No backtracking.
- Clean/dirty zoning: Separate staff uniforms, door entries, break rooms. Enables BRC and IFS audits to pass first time.
- Overhead utilities: Steam, air, water, and power routed above equipment; floor drains pitched 1.5-2% toward collection points.
Utility Load Reference for 1000 kg per h Frozen Line
| Utility | Demand | Notes |
|---|---|---|
| Installed electrical | 180-220 kW | 380V/50Hz, 3-phase + N |
| Natural gas | 95-120 m3/h | Gas-fired par-fryer + steam boiler |
| Process water | 14-18 m3/h | Soft, <=200 ppm hardness |
| Saturated steam | 1.5-2.0 t/h | 0.7-0.8 MPa from 2 t boiler |
| Compressed air | 1.5-2.0 m3/min | 0.6 MPa, dry, oil-free |
| Refrigeration load | 180-220 kW | For IQF tunnel, ammonia or freon |
| Wastewater | 12-15 m3/h | BOD 1800-2400 mg/L, requires pre-treatment |
For a 3000 kg/h industrial line, scale up linearly: 350 kW electrical, 280 m3/h gas, 40 m3/h water, 4 t/h steam, 2000-2500 m2 footprint.
Quality, Food Safety, and Certifications
O French Fries Assembly Line produces a globally traded commodity subject to documented food-safety. EU retail, US foodservice, GCC supermarkets, and African export buyers all require strict compliance.
Certification Stack
- HACCP: Mandatory worldwide
- ISO 22000: Quality management system framework
- BRCGS Food Safety Issue 9: UK and most EU private-label retailers
- IFS Food: German, French, Italian retailers
- FDA 21 CFR 117: US market compliance
- GCC Halal Compliance: Middle East markets
- EAC TR CU 021/2011: Russia, Belarus, Kazakhstan, EAEU
All lines carry CE marking and PED 2014/68/EU compliance for pressurized components.
Six Critical Quality Control Points (KQCPs)
KQCP-1 Raw potato sugar control: Reducing sugar <0.4% (target 0.3%). Recommend in-line refractometry plus 14-21 day storage at 7-9 deg C.
KQCP-2 Two-stage blanch validation: Polyphenol oxidase should test negative on peroxidase assay after 90 deg C stage, otherwise color failures appear after 60-90 days frozen storage.
KQCP-3 SAPP dosing accuracy: 0.3-0.5% w/w in second blanch tank, monitored by daily titration.
KQCP-4 Acrylamide control: EU Regulation 2017/2158. Hold par-frying <=180 deg C, validate <=500 microgram/kg.
KQCP-5 Frying oil TPM: Test daily; replace before TPM exceeds 24%. Inline filtration holds TPM at 12-16% for 12-15 days.
KQCP-6 IQF core temperature: Target <=-18 deg C at tunnel exit, validated daily with thermocouple probe.
For an industrial French Fries Assembly Line, a full BRCGS Issue 9 documentation pack, three-year acrylamide trend data, and lot-level traceability are standard. These enable successful audits and global market access.
Real-World Project Cases We Have Delivered
The following three cases illustrate technical and commercial outcomes from real French Fries Assembly Line projects, anonymized for confidentiality.
South Asia 2000 kg per h Industrial Line, Pune Commissioned 2023
- Customer: National snack food group with existing chips factory, new to frozen fries export market.
- Challenge: Achieving BRCGS and IFS certification with local potato varieties and low operator skill base.
- Solution:
- Dual-tank steam blanchers with inline SAPP dosing and PID control
- Fluidized-bed IQF tunnel, 3-6 operator SCADA interface
- Full documentation pack for BRCGS Issue 9 and EU 2017/2158 acrylamide compliance
- Outcome:
- Passed BRCGS audit first cycle, export contracts signed within 6 months
- Oil usage dropped by USD 185,000/year with inline filtration
- Key Lesson: Full automation and certification stack are prerequisites for export to EU and GCC.
Southeast Asia 1000 kg per h Mid-Range Line, Surabaya Commissioned 2022
- Customer: Regional frozen foods brand supplying QSR chains and supermarkets.
- Challenge: Reducing frying oil and labor costs while improving frozen fry shelf life.
- Solution:
- Cabinet IQF freezer with +/-2 deg C control
- External gas heat exchanger, LPG/diesel switching
- Hydro-cutter with interchangeable strip formats
- Outcome:
- Oil life extended to 12-14 days, annual savings of USD 110,000
- Labor compressed from 11 to 6 operators per shift
- Key Lesson: Oil filtration and automation upgrades pay back in under 18 months.
West Africa 300 kg per h Small Scale Line, Lagos Commissioned 2021
- Customer: Local foodservice supplier serving QSR and institutional buyers.
- Challenge: Achieving sub-USD 250k CapEx and HACCP compliance with a small operator crew.
- Solution:
- Brush roller peeler, mechanical strip cutter
- Single-tank electric blancher, par-frying with compact oil filter
- IQF cabinet freezer, 6-8 operator crew
- Outcome:
- HACCP registration passed, local QSR supply contracts secured
- Yield improved by 3-5% after SAPP dosing calibration
- Key Lesson: Entry-level lines must prioritize reliable core equipment and basic food safety controls.
CapEx, OpEx, and ROI Math for a French Fries Assembly Line
This investment model for a 500 kg/h totalmente automático French Fries Assembly Line is based on actual project costs and operating results.
CapEx Breakdown
| Item | % of Total | Notes |
|---|---|---|
| Process equipment | 60% | EXW basis |
| Civil works and foundations | 12-15% | Greenfield vs brownfield |
| Utility build-out | 8-10% | Boiler, transformer, refrigeration |
| Installation and commissioning | 7-9% | Our engineers on-site 4-6 weeks |
| Spare parts (Year 1) | 4-5% | Belts, bearings, filters |
| Operator training | 1-2% | 2-3 weeks, language-specific |
| Contingency | 5-8% | Recommended buffer |
For the 500 kg/h tier, total project CapEx is USD 580,000-850,000, with equipment at USD 380k-520k EXW.
OpEx Structure
| OpEx Category | % of Revenue | Notes |
|---|---|---|
| Raw potato | 38-42% | ~USD 0.30/kg, 50% yield |
| Frying oil | 8-11% | Palm oil, with our filtration 12-15 day life |
| Energy (gas + electric) | 6-9% | Lower if grid is cheap |
| Direct labor | 4-7% | Geography-dependent |
| Packaging materials | 5-7% | Bags, cartons |
| Maintenance and spares | 2-3% | After Year 1 |
| Other (water, treatment, QC) | 2-3% | – |
ROI Illustration
500 kg/h x 14 hr/day x 300 days = 2100 tonnes finished fries/year. At USD 1.10-1.30/kg wholesale, revenue is USD 2.3-2.7 million. EBITDA margin ranges 22-28%; payback is 24-32 months including civil works, 18-24 months for equipment. These results require the right line size and stable raw potato supply.
For an industrial French Fries Assembly Line, labor compresses to 3-4% while maintenance rises to 3-4%. In African markets, diesel surcharge adds 2-3 points to energy. Southeast Asia benefits from palm oil and labor cost advantages, compressing OpEx by 3-4 points. Middle East gas subsidies drop energy below 5%.
Frequently Asked Questions About French Fries Assembly Line
How is a French fries line different from a potato chips line?
While 70% of the peeling, washing, and packaging machines overlap, the French Fries Assembly Line uses strip cutting, two-stage blanching, and par-frying (50-140 sec), then IQF freezing. Chips lines use slice cutting, single blanch, longer fry (3-3.5 min), and immediate seasoning. Combined lines add 15-20% CapEx.
What is the typical investment range?
Total project cost for a French Fries Assembly Line ranges from USD 280k for a 200 kg/h plant up to USD 5M+ for a 3000 kg/h industrial export facility. Equipment is typically 60-65% of total CapEx.
What is the smallest viable capacity?
100 kg/h finished output is the practical minimum for a frozen French Fries Assembly Line. Below this, fixed costs such as refrigeration and QC do not amortize well. For fresh-cut fries, 50 kg/h is workable.
Can the line produce both fresh and frozen fries?
Yes. The French Fries Assembly Line can produce both: fresh fries skip the IQF tunnel and pack into chilled cartons after par-frying. Changeover to frozen production takes 30-45 minutes.
What potato varieties work best?
Preferred varieties for a French Fries Assembly Line are Russet Burbank, Innovator, Shepody, and Lady Claire or Markies. Target 20%+ dry matter and reducing sugar <0.4%.
What is the project lead time?
Manufacturing takes 10-14 weeks, sea shipment 4-6 weeks, installation and commissioning 8-10 weeks. Total lead time is 24-28 weeks from contract to commercial production for a French Fries Assembly Line.
What certifications are required for export?
For EU: HACCP plus BRCGS or IFS and EU 2017/2158 acrylamide compliance. For the US: FDA 21 CFR 117, FSVP, and a GFSI-recognized scheme. Halal and kosher are market-specific.
What is the typical ROI window?
At 14 hr/day and 300 days per year, producing ~2100 tonnes/year at USD 1.10-1.30/kg wholesale, EBITDA margin is 22-28%, with equipment payback in 18-24 months and total project payback in 24-32 months.
Portuguese
English
Spanish
French
Arabic
Russian
German
Italian
Indonesian
Malay
Uzbek
